Population Template Construction

This notebook demonstrates how to build population-level templates from individual subject volumes using the kwneuro registration tools.

Download example data

We download 3 subjects from the MPI-Leipzig Mind-Brain-Body dataset (OpenNeuro ds000221). This dataset contains 64-direction single-shell DWI data (b ~ 1000 s/mm²), which is sufficient for DTI-based template construction.

Total download size: ~250 MB for 3 subjects.

from pathlib import Path

import openneuro as on

DATA_DIR = Path("example_data/ds000221")
SUBJECTS = ["sub-010002", "sub-010005", "sub-010006"]

# Download if not already present
if not DATA_DIR.exists() or not any(DATA_DIR.iterdir()):
    print("Downloading example data from OpenNeuro ds000221...")
    print("This may take a few minutes (~250 MB total).")
    on.download(
        dataset="ds000221",
        target_dir=str(DATA_DIR),
        include=[
            "dataset_description.json",
            "participants.tsv",
        ] + [f"{s}/ses-01/dwi/*" for s in SUBJECTS],
    )
    print("Download complete!")
else:
    print(f"Using existing data at {DATA_DIR.resolve()}")

Load DWI data and compute per-subject FA / MD

We construct Dwi objects from each subject’s DWI files, fit a diffusion tensor, and extract FA and MD maps. These scalar maps are then used for template construction.

import matplotlib.pyplot as plt
import numpy as np
import tempfile

from kwneuro.dwi import Dwi
from kwneuro.io import FslBvalResource, FslBvecResource, NiftiVolumeResource
from kwneuro.masks import brain_extract_dwi_batch
from kwneuro.resource import VolumeResource

# Load all DWIs from the downloaded data
dwis: list[Dwi] = []
for subject in SUBJECTS:
    dwi_dir = DATA_DIR / subject / "ses-01" / "dwi"
    dwi_nifti = next(dwi_dir.glob("*_dwi.nii.gz"))
    basename = dwi_nifti.name.removesuffix(".nii.gz")

    dwis.append(Dwi(
        NiftiVolumeResource(dwi_dir / f"{basename}.nii.gz"),
        FslBvalResource(dwi_dir / f"{basename}.bval"),
        FslBvecResource(dwi_dir / f"{basename}.bvec"),
    ).load())

print(f"Loaded {len(dwis)} subjects")

if SUBSAMPLE:
    from kwneuro.dwi import subsample_dwi

    dwis = [subsample_dwi(d, SUBSAMPLE_FACTOR) for d in dwis]
    print(f"Subsampled by factor {SUBSAMPLE_FACTOR}")

# Brain extraction in one batch (HD-BET initializes once)
with tempfile.TemporaryDirectory() as tmpdir:
    cases = [(dwi, Path(tmpdir) / f"mask_{i}.nii.gz") for i, dwi in enumerate(dwis)]
    # Load masks into memory before the temp directory is cleaned up
    masks = [m.load() for m in brain_extract_dwi_batch(cases)]

# Estimate DTI and extract FA/MD
fa_volumes: list[VolumeResource] = []
md_volumes: list[VolumeResource] = []

for dwi, mask in zip(dwis, masks):
    dti = dwi.estimate_dti(mask=mask)
    fa_vol, md_vol = dti.get_fa_md()
    fa_volumes.append(fa_vol)
    md_volumes.append(md_vol)

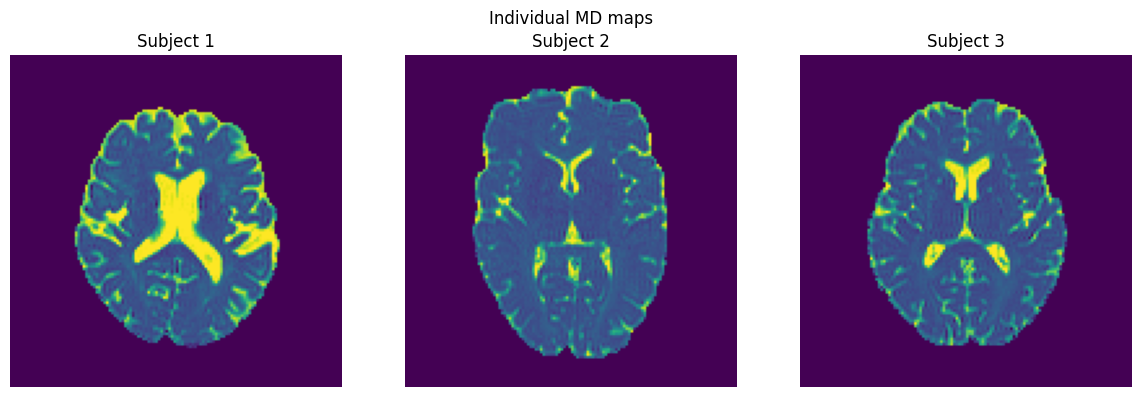

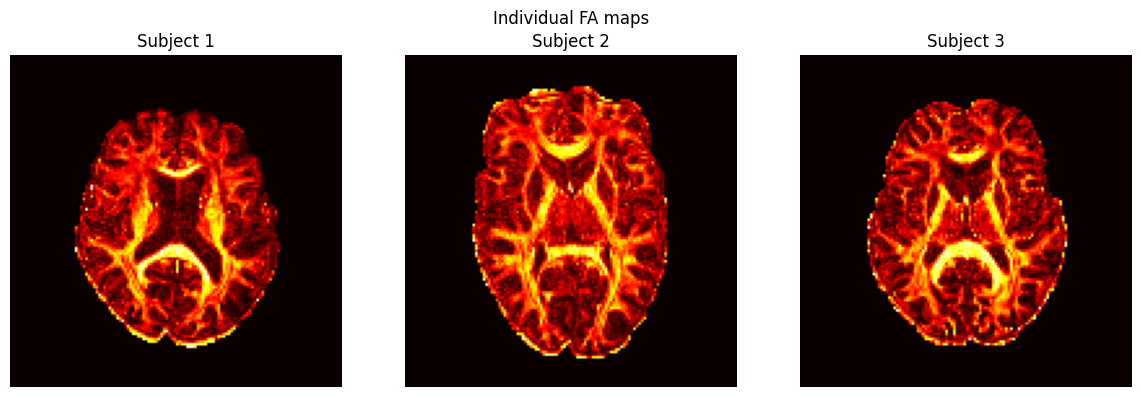

Preview a slice of the individual FA and MD maps.

print(f"Computed FA/MD for {len(fa_volumes)} subjects")

n_show = min(len(fa_volumes), 4)
fig, axes = plt.subplots(1, n_show, figsize=(4 * n_show, 4))
if n_show == 1:
    axes = [axes]
for i, ax in enumerate(axes):
    arr = fa_volumes[i].get_array()
    mid = arr.shape[2] // 2
    ax.imshow(arr[:, :, mid].T, cmap="hot", origin="lower", vmin=0, vmax=1)
    ax.set_title(f"Subject {i + 1}")
    ax.axis("off")
plt.suptitle("Individual FA maps")
plt.tight_layout()
plt.show()

n_show = min(len(md_volumes), 4)
fig, axes = plt.subplots(1, n_show, figsize=(4 * n_show, 4))
if n_show == 1:
    axes = [axes]
for i, ax in enumerate(axes):
    arr = md_volumes[i].get_array()
    mid = arr.shape[2] // 2
    ax.imshow(arr[:, :, mid].T, cmap="viridis", origin="lower", vmin=0, vmax=3e-3)
    ax.set_title(f"Subject {i + 1}")
    ax.axis("off")
plt.suptitle("Individual MD maps")
plt.tight_layout()
plt.show()

Computed FA/MD for 3 subjects

png

png

Single-metric population template

build_template constructs an unbiased group-wise mean template via iterative ANTs SyN registration. Each iteration:

  1. Registers every subject to the current template

  2. Averages the warped images

  3. Corrects for mean shape bias using the inverse average transform

  4. Sharpens the result

The initial template is the simple voxel-wise average (no registration).

from kwneuro.build_template import average_volumes, build_template

initial_avg = average_volumes(fa_volumes)

fa_template_1it = build_template(fa_volumes, initial_template=initial_avg, iterations=1)

fa_template_4it = build_template(fa_volumes, initial_template=fa_template_1it, iterations=3)

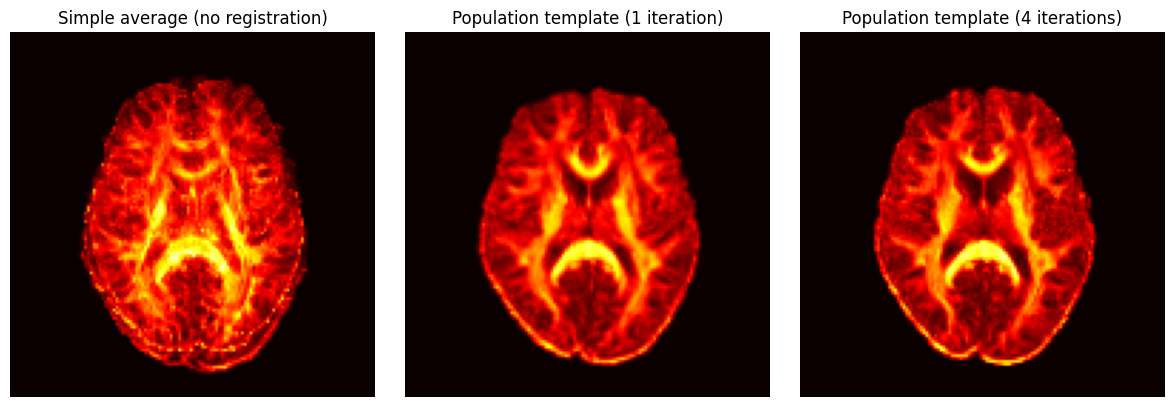

Compare the naive average with the registration-based template.

avg_arr = initial_avg.get_array()
tmpl_arr_1it = fa_template_1it.get_array()
tmpl_arr_4it = fa_template_4it.get_array()
mid = avg_arr.shape[2] // 2

fig, axes = plt.subplots(1, 3, figsize=(12, 4))
axes[0].imshow(avg_arr[:, :, mid].T, cmap="hot", origin="lower", vmin=0)
axes[0].set_title("Simple average (no registration)")
axes[1].imshow(tmpl_arr_1it[:, :, mid].T, cmap="hot", origin="lower", vmin=0, vmax=1)
axes[1].set_title("Population template (1 iteration)")
axes[2].imshow(tmpl_arr_4it[:, :, mid].T, cmap="hot", origin="lower", vmin=0, vmax=1)
axes[2].set_title("Population template (4 iterations)")
for ax in axes:
    ax.axis("off")
plt.tight_layout()
plt.show()

png

Multi-metric population template

build_multi_metric_template uses multiple modalities simultaneously to drive the registration. The first modality is used for the affine step; all modalities contribute to the deformable (SyN) step.

Each subject is passed as a dictionary mapping modality names to volumes.

from kwneuro.build_template import build_multi_metric_template

subject_list = []
for fa, md in zip(fa_volumes, md_volumes):
    subject_list.append({"FA": fa, "MD": md})

multi_template_1it = build_multi_metric_template(
    subject_list,
    weights={"FA": 1.0, "MD": 1.0},
    iterations=1,
)

multi_template_4it = build_multi_metric_template(
    subject_list,
    weights={"FA": 1.0, "MD": 1.0},
    iterations=3,
    initial_template=multi_template_1it,
)

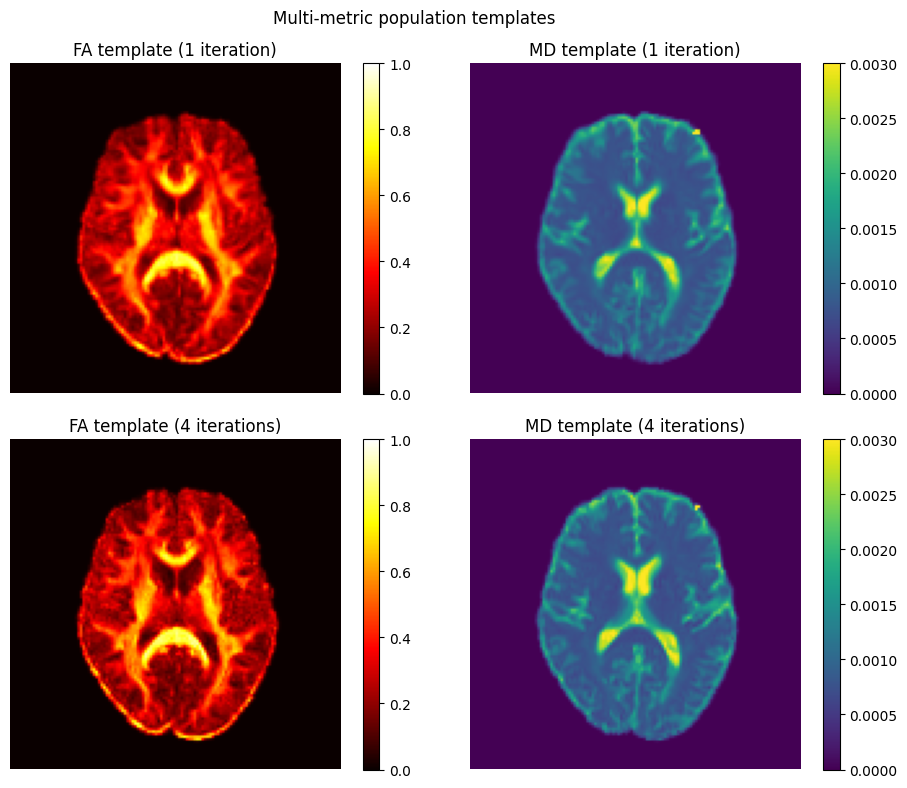

Visualise the multi-metric template for each modality.

fig, axes = plt.subplots(2, 2, figsize=(10, 8))

fa_tmpl_1it = multi_template_1it["FA"].get_array()
md_tmpl_1it = multi_template_1it["MD"].get_array()
fa_tmpl_4it = multi_template_4it["FA"].get_array()
md_tmpl_4it = multi_template_4it["MD"].get_array()
mid = fa_tmpl_1it.shape[2] // 2

im0 = axes[0,0].imshow(fa_tmpl_1it[:, :, mid].T, cmap="hot", origin="lower", vmin=0, vmax=1)
axes[0,0].set_title("FA template (1 iteration)")
plt.colorbar(im0, ax=axes[0,0], fraction=0.046)

im1 = axes[0,1].imshow(md_tmpl_1it[:, :, mid].T, cmap="viridis", origin="lower", vmin=0, vmax=3e-3)
axes[0,1].set_title("MD template (1 iteration)")
plt.colorbar(im1, ax=axes[0,1], fraction=0.046)

im2 = axes[1,0].imshow(fa_tmpl_4it[:, :, mid].T, cmap="hot", origin="lower", vmin=0, vmax=1)
axes[1,0].set_title("FA template (4 iterations)")
plt.colorbar(im2, ax=axes[1,0], fraction=0.046)

im3 = axes[1,1].imshow(md_tmpl_4it[:, :, mid].T, cmap="viridis", origin="lower", vmin=0, vmax=3e-3)
axes[1,1].set_title("MD template (4 iterations)")
plt.colorbar(im3, ax=axes[1,1], fraction=0.046)

for ax in axes.flatten():
    ax.axis("off")
plt.suptitle("Multi-metric population templates")
plt.tight_layout()
plt.show()

png

Save templates to disk

output_dir = Path("output")
output_dir.mkdir(exist_ok=True)

NiftiVolumeResource.save(fa_template_4it, output_dir / "fa_template.nii.gz")

for name, vol in multi_template_4it.items():
    NiftiVolumeResource.save(vol, output_dir / f"{name.lower()}_template_multi.nii.gz")

print(f"Templates saved to {output_dir.resolve()}")
